Circle Progress Bar Control for VB.NET

Add a new User Control and add these codes in it :

   Dim _Myrr As Integer
   Public Property rr As Integer
     Set(value As Integer)
       _Myrr = value
     End Set
     Get
       Return _Myrr
     End Get
   End Property
   Private Sub DrawProgress(g As Graphics, rect As Rectangle, percentage As Single)
     'work out the angles for each arc
     Dim progressAngle = CSng(360 / 100 * percentage)
     Dim remainderAngle = 360 - progressAngle
     'create pens to use for the arcs
     Using progressPen As New Pen(Color.LightSeaGreen, 2), remainderPen As New Pen(Color.LightGray, 2)
       'set the smoothing to high quality for better output
       g.SmoothingMode = Drawing2D.SmoothingMode.AntiAlias
       'draw the blue and white arcs
       g.DrawArc(progressPen, rect, -90, progressAngle)
       g.DrawArc(remainderPen, rect, progressAngle - 90, remainderAngle)
     End Using
     'draw the text in the centre by working out how big it is and adjusting the co-ordinates accordingly
     Using fnt As New Font(Me.Font.FontFamily, 14)
       Dim text As String = percentage.ToString + "%"
       Dim textSize = g.MeasureString(text, fnt)
       Dim textPoint As New Point(CInt(rect.Left + (rect.Width / 2) - (textSize.Width / 2)), CInt(rect.Top + (rect.Height / 2) - (textSize.Height / 2)))
       'now we have all the values draw the text
       g.DrawString(text, fnt, Brushes.Black, textPoint)
     End Using
   End Sub
   Private Sub UserControl1_Paint(sender As Object, e As PaintEventArgs) Handles Me.Paint
     DrawProgress(e.Graphics, New Rectangle(5, 5, 60, 60), _Myrr)
   End Sub

Don't forget to add these two namespaces :

 Imports System.Drawing
 Imports System.Windows.Forms

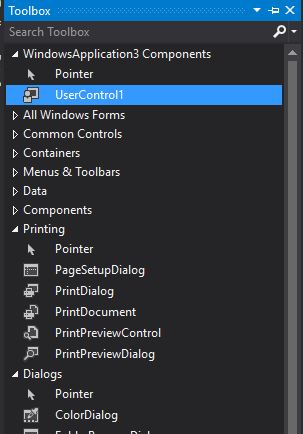

 Now Build your project and then check your ToolBox you'll see a new Tool

That's our Circle Progress Bar!
Now add our Progress Bar, a Timer and a Button.

Timer1_Tick Code :

     If UPT >= 100 Then
       UPT = 0
     Else
       UPT = UPT + 1
     End If
     UserControl11.rr = UPT
     UserControl11.Invalidate()
     UserControl11.Update()
     UserControl11.Refresh()

Button1_Click Code :

   Timer1.Enabled = True

Under Public Class add this Integer

   Public UPT As Integer

That's it, it should work fine now...

This is just an example of a Circle Progress Bar I found online, do comment your suggestions.
